Description
Trigger Systems Ruby 30 SumpThe RUBY series sumps are loaded with features and come with the trademark dark RUBY translucent red material. RUBY sumps have the same designs as the CRYSTAL but have the following differences:
Same or slightly larger dimensions
RUBY red coloring to block light and prevent unwanted algae growth in other sections
Probe holder
Some additional features of the RUBY sumps are:
Locking Filter Sock Holder
Dual platforms
Adjustable Water Height on the Elites and Cube
Protein Skimmer section
Refugium section

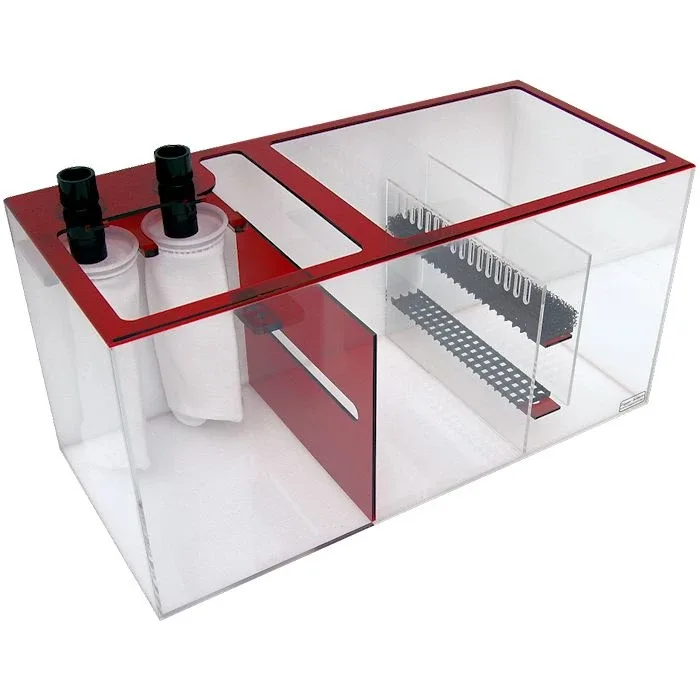

Trigger Systems Ruby 30 Sump
The RUBY series sumps are loaded with features and come with the trademark dark RUBY translucent red material. RUBY sumps have the same designs as the CRYSTAL but have the following differences:
Same or slightly larger dimensions
RUBY red coloring to block light and prevent unwanted algae growth in other sections
Probe holder
Some additional features of the RUBY sumps are:
Locking Filter Sock Holder
Dual platforms
Adjustable Water Height on the Elites and Cube
Protein Skimmer section
Refugium section
Adjustable Water Level
Water level in the sump is adjustable on the following RUBY sumps:
RUBY20C Cube from 7” to 9.5”
RUBY30E and RUBY36E Elite from 7” to 10”
This feature is to accommodate for the water height requirements for different protein skimmers.
Dual Platforms
RUBY sumps come with dual platforms in the space before the return section. The top platform comes with a foam block filter and the bottom one is open to use for several different filtration methods (bag of carbon, bio balls, rubble rock, etc.).
Locking Filter Sock Holder
Filter socks snap and lock into the filter sock holders to secure the filter sock from falling out when it becomes clogged and needs to be cleaned or replaced. The 4” filter socks are 100 micron rating.
Probe Holder
All RUBY sumps come with a probe holder that can hold up to three probes. The holes are 0.63” in diameter.
Draw String Tabs
Tabs are located on the top support brace in front of the 1” bulkhead fittings (which are included). The purpose of these tabs is to provide a location for tying off 7” diameter filter socks that have draw strings.
Trigger Systems Ruby 30 Sump Specifications:
Dimensions: 30″ long x 14″ wide x 15″ high
Drain/Skimmer Section: 11″ x 13.5″
Center/Refugium Section: 9.5″ x 13.5″
Return Pump Section: 6″ x 13.5″
Total Water Volume: 25.0 gallons
Skimmer Water Level: 9.5″ fixed
Product code: 5258Item No. FT-TS-RUBY30S
