Description

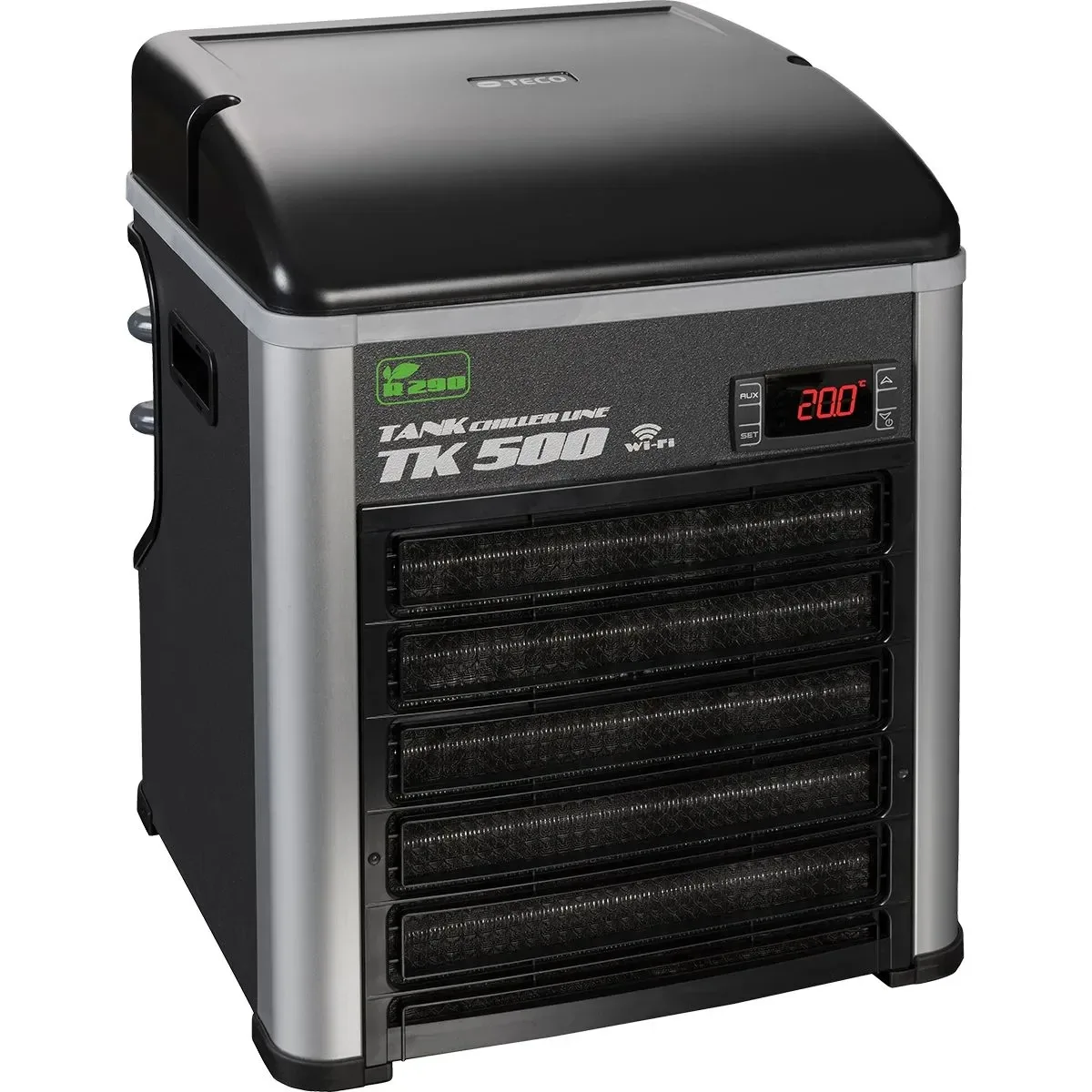

Teco TANK TK-500 Aquarium Chiller
EFFICIENT COOLING TECHNOLOGY
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption, and low noise levels.
DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 32 to 95°F. Closed-loop temperature control system with an extremely tight differential of 1°F. Displays in °F or °C, and audible alarms for certain situations.
EFFICIENT DESIGN
Solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections, rotatable exhaust conveyor, and smaller form-factor help facilitate placement of chiller in confined spaces.
Teco TANK TK-500 Aquarium Chiller
EFFICIENT COOLING TECHNOLOGY
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption, and low noise levels.
DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 32 to 95°F. Closed-loop temperature control system with an extremely tight differential of 1°F. Displays in °F or °C, and audible alarms for certain situations.
EFFICIENT DESIGN
Solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections, rotatable exhaust conveyor, and smaller form-factor help facilitate placement of chiller in confined spaces.
Cooling Performance
The ability of the TANK TK-500 to pull down water temperatures in an 86°F room:
AQUARIUM SIZETEMP. ATTAINABLEHEATING LOADNET PULL-DOWNC.O.P.*
130 gallons
77°F from 86°F
1.89 watts/gal.
9°F cooler
2.0
* Coefficient of Performance (COP) – a numerical value that represents cooling performance from a baseline room temperature of 86°F and a typical heat source (aka. Heating Load
Technical Specifications
Recommended Aquarium Size
up to 120 gallons
Horsepower
1/6 HP
Maximum Pressure
8.7 psi
Minimum Flow Rate
106 gallons per hour
Maximum Flow Rate
211 gallons per hour
In/Out Water Connection
5/8″ tube diameter
Exchanger
titanium
Supply
120V-60Hz
Power Consumption
225 Watts
Gas/Refrigerant
R134a
Minimum Set Point
41°F
Maximum Set Point
95°F
Weight
36.4 lbs. (16.5 kg)
Dimensions
12.2″ x 12.2″ x 16.38″
Product code: 7117Item No. CH-TK500
