Description

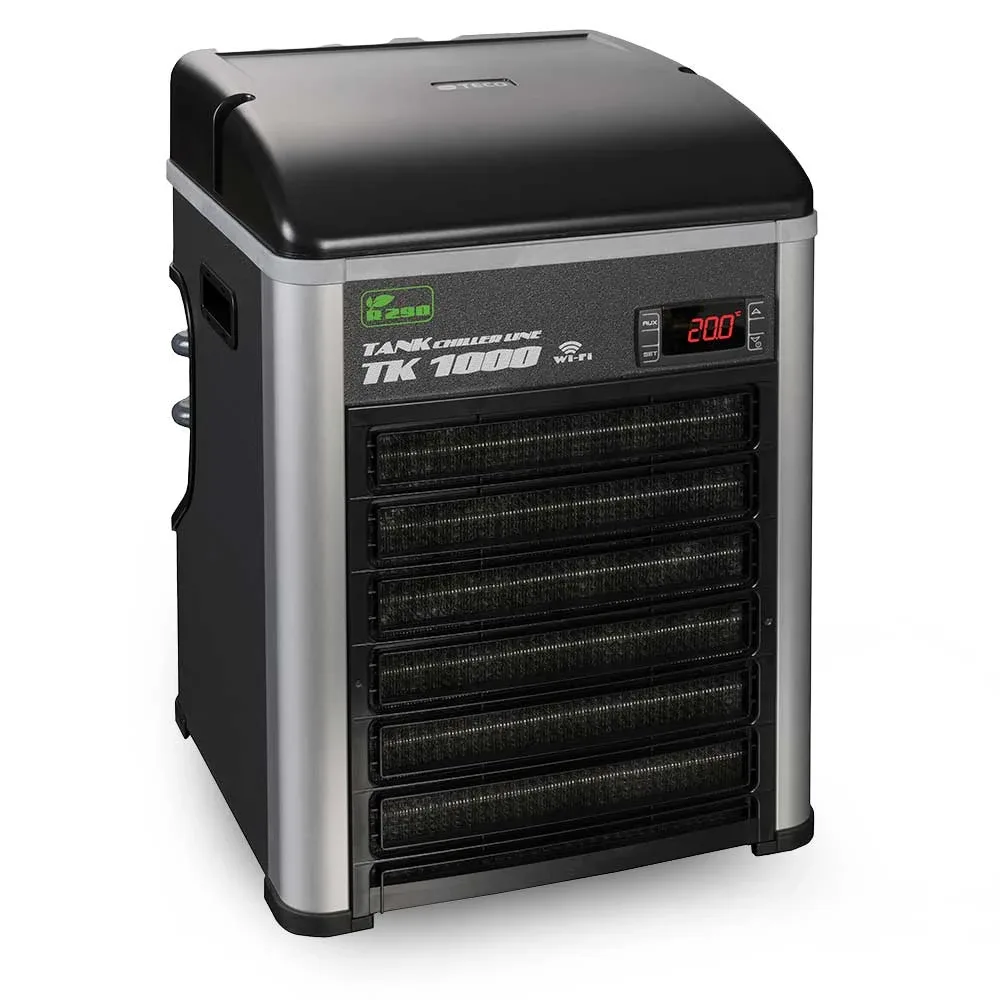

Chiller + Heater for standard systems & aquariums up to 120 gallons
The new TANK chiller line is the next generation of TECO’s flagship SeaChill aquarium chillers—used by consumers and professionals for over a decade. The TECO TANK is the result of one of TECO’s most ambitious and comprehensive redesigns of the SeaChill aquarium chiller to-date. New changes include an increase in cooling efficiency and improved usability, functionality, and durability.
Teco has once again reshaped the chiller industry by introducing the most energy-efficient and environmentally friendly chiller to date for the Aquarium Tank and Hydroponic industries. Centered around a proven Hydrocarbon refrigerant compressor with R290 coolant, the new Teco CHILLER ONLY models, 500, 1000, and 2000 chillers can easily outperform traditional compressors by cutting energy consumption by 30% to 50%. Additionally, R290’s environmentally friendly characteristics mean a dramatic decrease in the earth’s ozone destruction by up to 600 times over traditional chiller coolants.
Less operating cost and more of Earth’s ozone sound like a winning combination for everyone!
Cooling Performance
The ability of the TK-1000 to pull down temperatures in a 86°F room:
Aquarium Size
Temp. Attainable
Heating Load
Net Pull-Down
C.O.P.*
260 gallons
77°F from 86°F
1.89 Watts/gal
9°F cooler
2.1
55 gallons
47°F from 86°F
0.38 Watts/gal
39°F cooler
1.3
* Coefficient of Performance (COP) – a numerical value that represents cooling performance from a baseline room temperature of 86°F and a typical heat source (aka. Heating Load)
Chiller Technical
Aquarium Size
between 60 & 200 gallons
Horsepower
1/4 HP
Wifi Capable
Yes
Built-in Heater
Yes
Maximum Pressure
8.7 psi
Minimum Flow Rate
132 gallons per hour
Maximum Flow Rate
211 gallons per hour
Water Inlet/Outlet Thread
3/4″ SAE thread (19mm)
Inlet/Outlet Barb Fitting
D 5/8″ (0.63″ or 16 mm)
Exchanger
Titanium
Supply
120V-60Hz
Power Consumption
315 Watts
Gas/Refrigerant
R290
Minimum Set Point
41°F
Maximum Set Point
95°F
Weight
44.1 lbs (20.0 kg)
Dimensions
12.2″ x 12.2″ x 18.03″
R290 BENEFITS
Reduces energy consumption by 30% to 50%
Replaces traditional ozone-damaging refrigerants
Scores 3 out of 150 on Global Warming Potential (GWP) scale
EFFICIENT COOLING TECHNOLOGY
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption, and low noise levels.
DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 32 to 95°F. Closed loop temperature control system with an extremely tight differential of 1°C. Displays in °F or °C, and audible alarms for certain situations.
EFFICIENT DESIGN
A solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections and smaller form-factor help facilitate placement of chiller in confined spaces.
