Description
The Red Sea REEF-FRAME MAX series takes the ultra-durable, eurobraced foundation of the standard REEF-FRAME line and elevates it into a fully integrated, Plug & Play smart reef system.
Instead of sourcing individual components, every REEF-FRAME MAX comes pre-equipped with Red Sea’s full suite of ReefBeat app-controlled hardware—including ReefLED G2 lighting, ReefWave gyre pumps, ReefRun DC return pumps, REEFER DC Skimmers, ReefMat automatic roller filters, and the ReefATO+ top-off system.
What’s Included in the REEF-FRAME MAX Ecosystem?
Every REEF-FRAME MAX system connects seamlessly through the Red Sea ReefBeat App for centralized monitoring, scheduling, and notifications:
ReefLED G2 Smart Lighting: Equipped with custom mounting arms. Offers REEF-SPEC spectrum tuned for maximum coral color and growth, a 23,000K blue channel, UV/violet LED arrays, and dedicated 3W moonlight.
ReefWave Gyre Circulation Pumps: Cross-flow technology delivering uniform, customizable water movement with silent sine-wave motor operation.
ReefRun DC Variable Speed Return Pump & Controller: Whisper-quiet, energy-efficient circulation with app-controlled flow rates, feed modes, and safety alerts.
REEFER DC Skimmer: Self-leveling smart skimmer featuring PSK DC pump technology, high-precision foam sensor, and automated neck cleaning alerts to eliminate skim-over.
ReefMat Automatic Fleece Roller: Plug & Play fleece roller filter replacing traditional filter socks for crystal-clear water with automated roll tracking.
ReefATO+ System: 3-in-1 auto top-off system featuring solid-state water level sensors, digital temperature monitoring, and an external leak detector.
Red Sea REEF-FRAME MAX 170 (46.2 Gal / 175 L System)
Overview

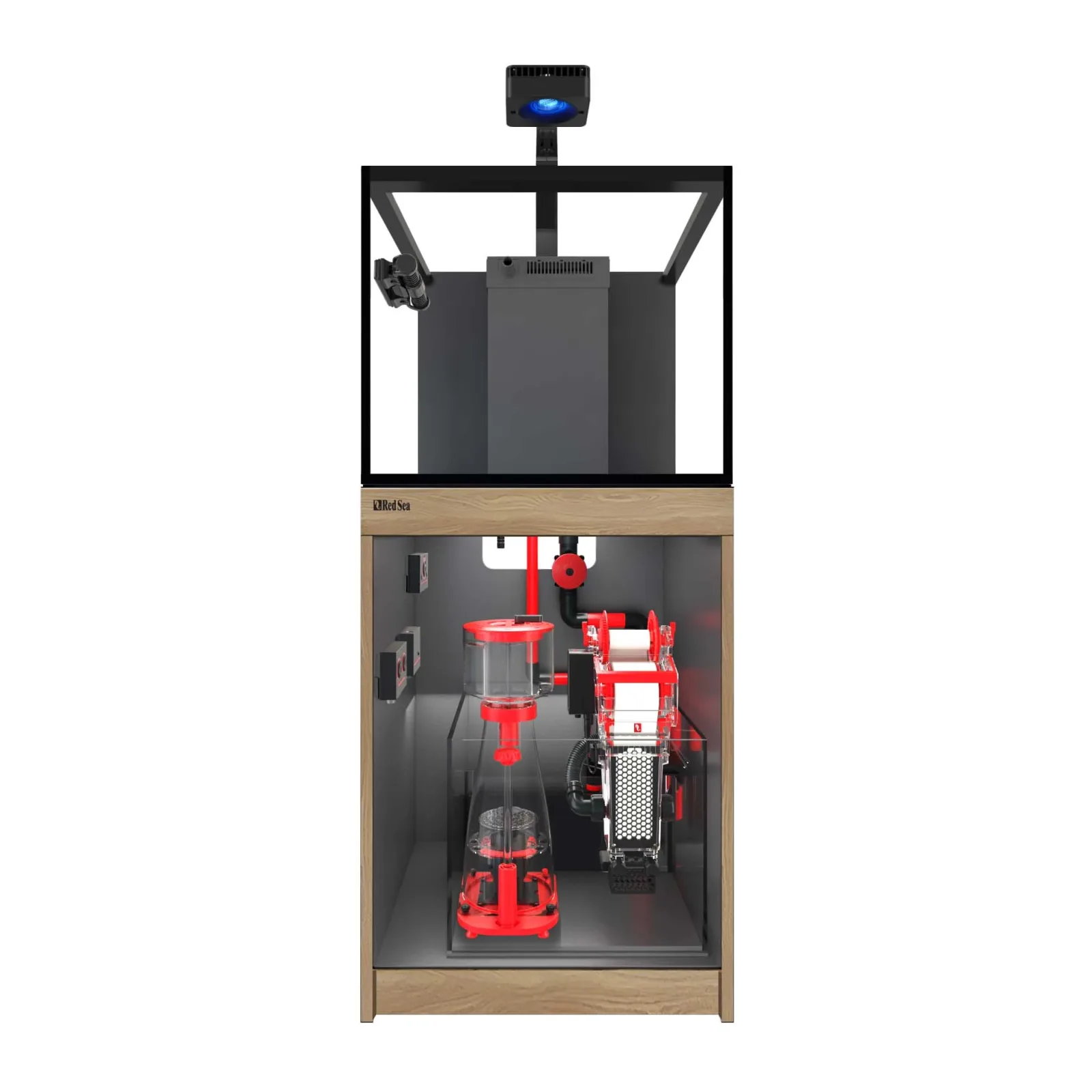

The Red Sea REEF-FRAME MAX 170 is a complete, compact 24-inch smart reef system. Designed for small spaces without sacrificing power, this setup packages Red Sea’s heavy-duty eurobraced glass tank and extra-fortified cabinet with a complete ecosystem of smart equipment.
Included MAX Equipment Package
Lighting: 1× ReefLED 115 G2 with custom tank-mount arm
Circulation: 1× ReefWave 25 Gyre Pump (1,980 GPH)
Return Pump: 1× ReefRun 4000 DC Return Pump & Controller
Skimmer: 1× REEFER DC 300 Skimmer
Mechanical Filtration: 1× ReefMat 250 Fleece Roller
ReefControl Pro: ReefBeat-connected, up to 7 ReefSense probes
ReefSense pH/temperature probe: Continuous pH and temperature monitoring
Auto Top-Off: 1× ReefATO+ 3-in-1 Auto Top-Off System
Technical Specifications
Total System Volume: 46.2 gal (175 L)
Display Tank Volume: 35.9 gal (136 L)
Sump Volume: 10.3 gal (39 L)
Display Dimensions (L × W × H): 23.6″ × 20.1″ × 20.9″ (60 cm × 51 cm × 53 cm)
Total System Height (excl. lights): 53.9″ (137 cm)
Glass Thickness: Front: 10 mm (0.39″) | Sides: 12 mm (0.47″) | Bottom: 10 mm (0.39″)
Return Outlets: 1× 25mm curved return outlet
Piping & Valve: Hydrodynamic plumbing with ReefGate precision valve
Cabinet Finishes: Black, White, Classic Oak
REEF-FRAME 170
REEF-FRAME 250
REEF-FRAME 350
REEF-FRAME 500
Total system water volume
46.2 gal
65 gal
93.4 gal
136.3 gal
Display tank water vol.
35.9 gal
53.9 gal
74.6 gal
107 gal
In-Cabinet sump water vol.
10.3 gal
11 gal
18.8 gal
29.3 gal
Display tank Length
23.6 ”
35.4 ”
47.2 ”
59.1 ”
Display tank width
20.1 ”
20.1 ”
21.6 ”
22.6 ”
Display tank height (excluding light unit)
20.9 ”
20.9 ”
20.9 ”
21.6 ”
Total system height (excluding light unit)
53.9 ”
53.9 ”
53.9 ”
55.9 ”
Ultra-clear front glass
0.39 ”
0.47 ”
0.47 ”
0.59 ”
Ultra-clear side glass
0.47 ”
0.47 ”
0.59 ”
0.59 ”
Bottom glass
0.39 ”
0.47 ”
0.47 ”
0.59 ”
Back glass thickness
0.31 ”
0.39 ”
0.47 ”
0.59 ”
Bracing
Euro brace
Euro brace
Euro brace
Euro brace
Aquarium Support
Full cabinet
Full cabinet
Full cabinet
Full cabinet
ReefLED advanced light system
1x ReefLED G2 115 w/ Mounting Arm
2x ReefLED G2 115 w/ Mounting Arm
2x ReefLED G2 115 w/ Mounting Arm
3x ReefLED G2 115 w/ Mounting Arm
Water circulation
1x ReefWave 25
2x ReefWave 25
2x ReefWave 25
2x ReefWave 45
Main system pump
1x ReefRun G2 4000
1x ReefRun G2 4000
1x ReefRun G2 6000
1x ReefRun G2 8000
Return outlet nozzles
1x 25mm (Single pump)
1x 25mm (Single pump)
2x 25mm (Single or dual pump)
2x 25mm (Single or dual pump)
Hydrodynamic piping with Gate valve
Yes
Yes
Yes
Yes
Protein Skimmer
1x Reefer DC Skimmer RSK 300
1x Reefer DC Skimmer RSK 300
1x Reefer DC Skimmer RSK 600
1x Reefer DC Skimmer RSK 600
ReefMat / NanoMat
1x ReefMat 250
1x ReefMat 250
1x ReefMat 500
1x ReefMat 1200
ReefControl Controller
ReefControl Pro
ReefControl Pro
ReefControl Pro
ReefControl Pro
ATO Module …
